Introduction:


Add value your bussiness with high quality machine, Fujifilm's high-Standard Uvijet links, Technical service support above industrial standards and expert technical teams.

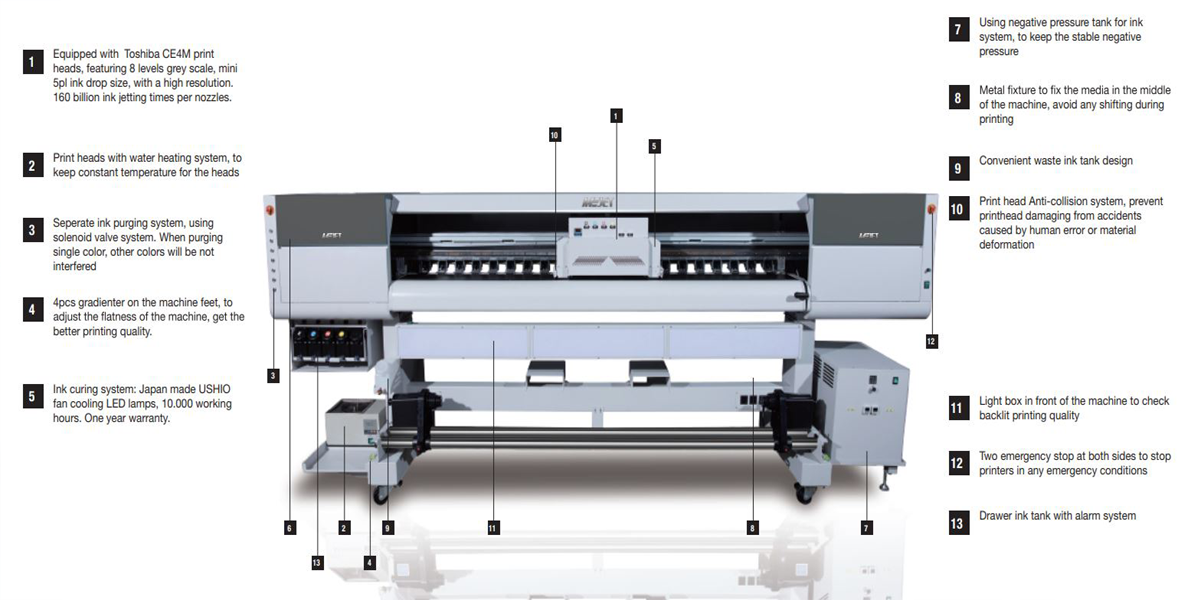

Key benefits:

* Equipped with Toshiba CE4M print heads, featuring 8 levels grey scale, mini 5pl ink drop size, with a high resolution. 160 billion ink jetting times per nozzles.
* Print heads with water heating system, to 2 keep constant temperature for the heads.
* Seperate ink purging system, using solenoid valve system. When purging single color, other colors will be not interfered.
* 4pcs gradienter on the machine feet, to adjust the flatness of the machine, get the Better printing quality.
* Ink curing system: Japan made USHIO fan cooling LED lamps, 10.000 working hours. One year warranty.
* 5 dedicated vacuum zones to minimise masking.
* Using negative pressure tank for ink system, to keep the stable negative pressure.
* Meteal fixture to the medhia in the middle of the machine, avoid any shifting during printing.
*„ Convenient waste ink tank design 9.
* Print head Anti-collision system, prevent printhead damaging from accidents caused by human error or material deformation.
Light box in front of the machine to check 11 backlit printing quality.
* Two emergency stop at both sides to stop 12 printers in any emergency conditions.
* Drawer ink tank with alarm system.

Specificatons:

MEJET 1800UV
Printheads Toshiba CE4M heads
Number of Printhead Max 8pcs print heads
Print mode Bi-direction
Speed 300x1200dpi - 4pass - 32m2/hr
300x1800dpi - 6pass - 23m2/hr
300x2400dpi - 8pass - 17m2/hr (backlit mode)
Max. Print Width 1.8m
Print Media Materials Self adhesive vinyi, fabrics, flex banner, backlit film, wall paper etc.
Roller OD Max 250mm
Roller Weight Max 100kg
Take up - Feeding system Double power automatic taking up system / single roller feeding
Ink Color (K. C. M, Y, W) (LC, LM are optional colors)
Ink Type LED UV
RIP Software UnitedFancy (Printfactory OEM rip software)
Data transmission interface USB 3.0
Power Machine 1000W
Water Circulation 300W
Machine Weight 400kg
Machine Size 3372mm x 854mm x 1300mm
Packing size/weight 3500mm x 920mm x 1430mm / 650kg
Computer configuration Operation Windows 7/8/10 (64bit)
CPU i5 or more
Graphics Card Independent 2gb
Memory 8GB
Hard Disk 1TB
USB USB 3.0
Power requirement 220VAC(+10%) Single Phase, 50/60Hz, 6A
Working Environment * Constant humidity of 40% ~ 70% RH
* Clean and dust-free
* Sheltered from sunlight
* In a good ventilating condition
* Rated voltage of 220V and the voltage between neutral and ground should be below the value of 3V
