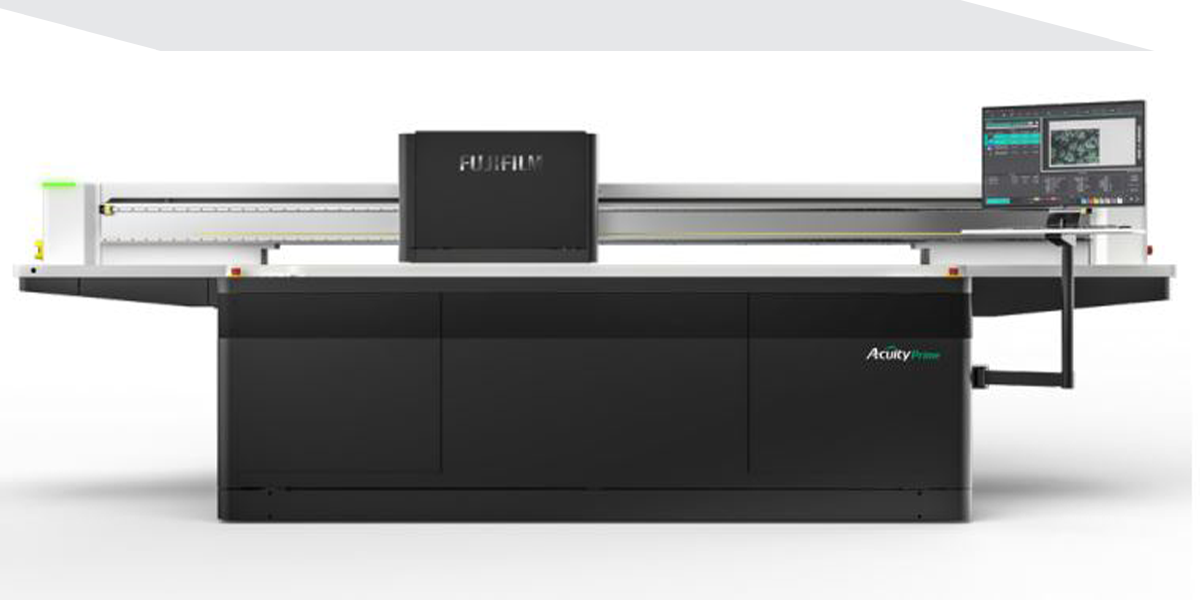

Acuity Prime

Introduction:


A true flatbed with a unique, exceptional design and high value, the Acuity Prime offers high quality printing on a range of rigid and flexible media, supported by its five dedicated vacuum zones and jettable primer. This range is available at a cost effective price point and offers an excellent return on investment.

Key benefits:

* „Dedicated flatbed design.
* High resolution greyscale printheads.
* Standard (2.54 m x 1.27 m).
* Up to 150 m²/hr throughput.
* Registration pins.
* 5 dedicated vacuum zones to minimise masking.
* Powerful instant curing LED UV system.
* Fujifilm Uvijet LED UV curing inks.
*„ Standard 4 colour plus white with clear and optional jettable primer.
* Automatic Printhead Maintenance System (APMS).

Features:

1. Lower cost of ownership and excellent ROI:

With variable drop-size printheads and highly pigmented inks, Acuity Prime printers lay down a thin ink film, which minimises production costs, and in combination with a competitive system price, support an excellent ROI.

2. Produce a wide range of applications:


With outstanding image quality and excellent adhesion to a broad range of rigid and flexible media, materials and objects, the Acuity Prime can produce an amazing variety of printed products for distance and close viewing. The vacuum table can handle almost any sheet material. It secures rigid and flexible media and holds it perfectly flat for high quality print across every sheet.

3. Expand your creative options:


The option to print with white and clear inks, and to print directly to almost any material in perfect registration, enables the Acuity Prime to produce high value, creative work that could offer opportunities for new revenue. With the jettable primer option, the Acuity Prime can adhere to a wide variety of industrial media

4. Designed with the operator in mind:


At Fujifilm we understand the value of production time and usability, so we designed the Acuity Prime with the operator in mind. With a new and user-friendly GUI, easy clean printhead maintenance and visible status lights for the ink tanks, operators are able to spend less time maintaining the machine and more time printing.

Specificatons:

Technical specification:
Acuity Prime 20 30
Rigid media Max size 2.54 x 1.27 m 2.54 x 1.27 m
Max thickness 51 mm 51 mm
Max print area 2.54 x 1.27 m 2.54 x 1.27 m
Max weight 45 kg/m² 45 kg/m²
Ink Fujifilm Uvijet HM LED UV ink curable inks Fujifilm Uvijet HM LED UV ink curable inks
Configuration 4 channel - CMYK,
5 channel- CMYK+P,CMYK+W
or CMYK + Cl
6 channel - CMYK+P+W,CMYK+P+Cl
or CMYK + W + Cl
4 channel - CMYK,
5 channel - CMYK+P,CMYK+W
or CMYK + Cl
6 channel - CMYK+P+W,CMYK+P+Cl
or CMYK + W + Cl
7 channel - CMYK+P+W+Cl
Curing system Long lasting, low energy LED curing system Long lasting, low energy LED curing system
Printheads Ricoh Gen 5 greyscale, variable drop 7 - 21 pl Ricoh Gen 5 greyscale, variable drop 7 - 21 pl
Printing resolution Maximum 726 x 1,200 dpi (Fine Art) Maximum 726 x 1,200 dpi (Fine Art)
RIP recommendation ColorGATE, Caldera, Onyx ColorGATE, Caldera, Onyx
Operating environment 16-30 ºC, 30-70% RH non condensing 16-30 ºC, 30-70% RH non condensing
Power requirements 220-240 VAC, single phase 50Hz/60Hz 220-240 VAC, single phase 50Hz/60Hz
Dimensions (W X L X H) Printer 2.1 x 4.9 x 1.5 m 2.1 x 4.9 x 1.5 m
Weight Printer 1600 kg 1600 kg
